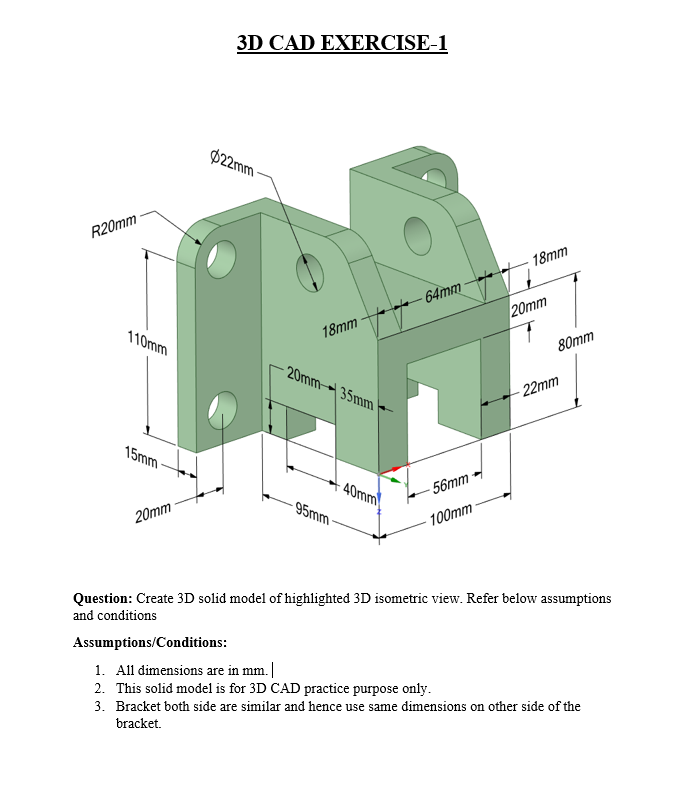

This drawing represents 3D CAD Isometric view with all necessary dimensions. It is not actual product drawing but It can be used for study purposes. It is an exercise for engineers to create 3D model using different modeling software.
This drawing represents 3D CAD Isometric view with all necessary dimensions. It is not actual product drawing but It can be used for study purposes. It is an exercise for engineers to create 3D model using different modeling software.
